Certificate of Analysis
Page 1 of 3
Client:
Revital Fertilisers
Lab No:
2244700
SPv1
Contact: D Gibson
Date Received:
20-Sep-2019
C/- Revital Fertilisers
Date Reported:
27-Sep-2019
PO Box 8045
Quote No:
98937
New Plymouth 4342
Order No:
26124
Client Reference: Drilling Mud
Submitted By:
D Gibson
Sample Type: Sludge
Sample Name:
Turongi 8
12-Sep-2019
12:00 pm
Lab Number:
2244700.1
Individual Tests
Dry Matter
g/100g as rcvd
76
-
-
-
-
Total Recoverable Barium
mg/kg dry wt
2,900
-
-
-
-
Total Recoverable Potassium
mg/kg dry wt
3,800
-
-
-
-
Total Recoverable Sodium
mg/kg dry wt
810
-
-
-
-
Chloride*
mg/kg dry wt
10,500
-
-
-
-
pH
pH Units
10.68
-
-
-
-
Total Nitrogen*
g/100g dry wt
0.09
-
-
-
-
Heavy metals, screen As,Cd,Cr,Cu,Ni,Pb,Zn,Hg
Total Recoverable Arsenic
mg/kg dry wt
14
-
-
-
-
Total Recoverable Cadmium
mg/kg dry wt
< 0.10
-
-
-
-
Total Recoverable Chromium
mg/kg dry wt
30
-
-
-
-
Total Recoverable Copper
mg/kg dry wt
40
-
-
-
-
Total Recoverable Lead
mg/kg dry wt
92
-
-
-
-
Total Recoverable Mercury
mg/kg dry wt
< 0.10
-
-
-
-
Total Recoverable Nickel
mg/kg dry wt
18
-
-
-
-
Total Recoverable Zinc
mg/kg dry wt
75
-
-
-
-
BTEX in Solids by Headspace GC-MS
Benzene
mg/kg dry wt
< 0.06
-
-
-
-
Toluene
mg/kg dry wt
< 0.06
-
-
-
-
Ethylbenzene
mg/kg dry wt
< 0.06
-
-
-
-
m&p-Xylene
mg/kg dry wt
< 0.12
-
-
-
-
o-Xylene
mg/kg dry wt
< 0.06
-
-
-
-
Polycyclic Aromatic Hydrocarbons Screening in Solids
1-Methylnaphthalene
mg/kg dry wt
0.77
-
-
-
-
2-Methylnaphthalene
mg/kg dry wt
1.12
-
-
-
-
Acenaphthylene
mg/kg dry wt
< 0.14
-
-
-
-
Acenaphthene
mg/kg dry wt
< 0.14
-
-
-
-
Anthracene
mg/kg dry wt
< 0.14
-
-
-
-
Benzo[a]anthracene
mg/kg dry wt
< 0.14
-
-
-
-
Benzo[a]pyrene (BAP)
mg/kg dry wt
< 0.14
-
-
-
-
Benzo[a]pyrene Potency
mg/kg dry wt
< 0.4
-
-
-
-
Equivalency Factor (PEF) NES
Benzo[a]pyrene Toxic
mg/kg dry wt
< 0.4
-
-
-
-
Equivalence (TEF)
Benzo[b]fluoranthene + Benzo[j]
mg/kg dry wt
< 0.14
-
-
-
-
fluoranthene
Benzo[e]pyrene
mg/kg dry wt
< 0.14
-
-
-
-
Benzo[g,h,i]perylene
mg/kg dry wt
< 0.14
-
-
-
-
This Laboratory is accredited by International Accreditation New Zealand (IANZ), which represents New Zealand in
the International Laboratory Accreditation Cooperation (ILAC). Through the ILAC Mutual Recognition Arrangement
(ILAC-MRA) this accreditation is internationally recognised.
The tests reported herein have been performed in accordance with the terms of accreditation, with the exception of
tests marked *, which are not accredited.
Sample Type: Sludge
Sample Name:
Turongi 8
12-Sep-2019
12:00 pm
Lab Number:
2244700.1
Polycyclic Aromatic Hydrocarbons Screening in Solids
Benzo[k]fluoranthene
mg/kg dry wt
< 0.14
-
-
-
-
Chrysene
mg/kg dry wt
< 0.14
-
-
-
-
Dibenzo[a,h]anthracene
mg/kg dry wt
< 0.14
-
-
-
-
Fluoranthene
mg/kg dry wt
< 0.14
-
-
-
-
Fluorene
mg/kg dry wt
< 0.14
-
-
-
-
Indeno(1,2,3-c,d)pyrene
mg/kg dry wt
< 0.14
-
-
-
-
Naphthalene
mg/kg dry wt
0.9
-
-
-
-
Perylene
mg/kg dry wt
< 0.14
-
-
-
-
Phenanthrene
mg/kg dry wt
0.21
-
-
-
-
Pyrene
mg/kg dry wt
< 0.14
-
-
-
-
Total Petroleum Hydrocarbons in Solids
C7 - C9
mg/kg dry wt
131
-
-
-
-
C10 - C14
mg/kg dry wt
27,000
-
-
-
-
C15 - C36
mg/kg dry wt
46,000
-
-
-
-
Total hydrocarbons (C7 - C36)
mg/kg dry wt
73,000
-
-
-
-
2244700.1
Turongi 8 12-Sep-2019 12:00 pm

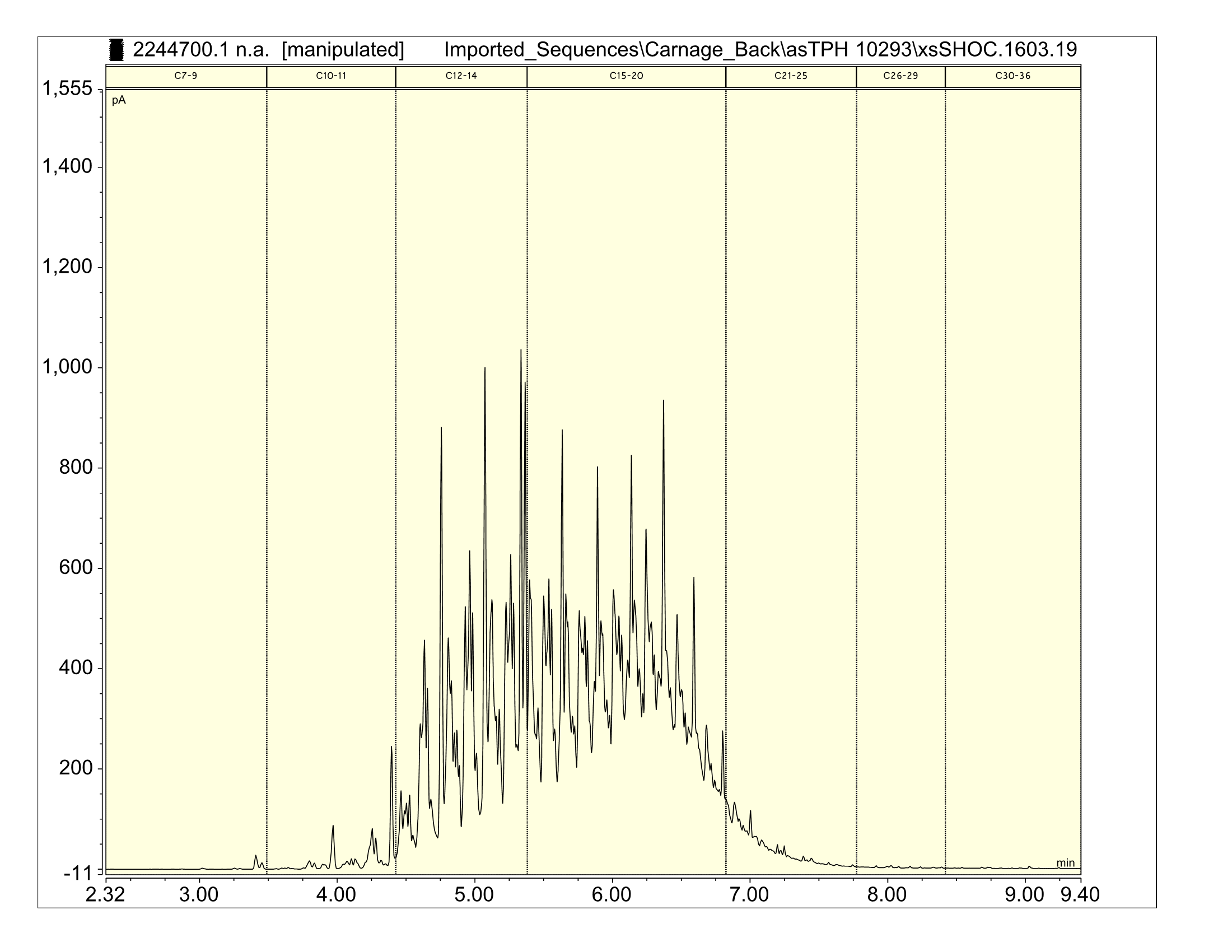

Client Chromatogram for TPH by FID
Summary of Methods
The following table(s) gives a brief description of the methods used to conduct the analyses for this job. The detection limits given below are those attainable in a relatively clean matrix.
Detection limits may be higher for individual samples should insufficient sample be available, or if the matrix requires that dilutions be performed during analysis.
Unless otherwise indicated, analyses were performed at Hill Laboratories, 28 Duke Street, Frankton, Hamilton 3204.
Sample Type: Sludge
Test
Method Description
Default Detection Limit
Sample No
Environmental Solids Sample Drying*
Air dried at 35°C
-
1
Used for sample preparation.
May contain a residual moisture content of 2-5%.
Environmental Solids Sample
Air dried at 35°C and sieved, <2mm fraction.
-
1
Preparation
Used for sample preparation.
May contain a residual moisture content of 2-5%.
Heavy metals, screen
Dried sample, <2mm fraction. Nitric/Hydrochloric acid digestion,
0.10 - 4 mg/kg dry wt
1
As,Cd,Cr,Cu,Ni,Pb,Zn,Hg
ICP-MS, screen level.
Dry Matter (Env)
Dried at 103°C for 4-22hr (removes 3-5% more water than air
0.10 g/100g as rcvd
1
dry) , gravimetry. (Free water removed before analysis, non-soil
objects such as sticks, leaves, grass and stones also removed).
US EPA 3550.
esICextn*
(1:5) ratio of sample (g):0.02M potassium dihydrogen ortho-
-
1
phosphate extractant (mL), analysis by Ion Chromatography. In
House.
Total Recoverable digestion
Nitric / hydrochloric acid digestion. US EPA 200.2.
-
1
Lab No:
2244700 v 1
Hill Laboratories
Page 2 of 3
Sample Type: Sludge
Test
Method Description
Default Detection Limit
Sample No
Total Recoverable Barium
Dried sample, sieved as specified (if required).
0.4 mg/kg dry wt
1
Nitric/Hydrochloric acid digestion, ICP-MS, screen level. US
EPA 200.2.
Total Recoverable Potassium
Dried sample, sieved as specified (if required).
100 mg/kg dry wt
1
Nitric/Hydrochloric acid digestion, ICP-MS, screen level. US
EPA 200.2.
Total Recoverable Sodium
Dried sample, sieved as specified (if required).
40 mg/kg dry wt
1
Nitric/Hydrochloric acid digestion, ICP-MS, screen level. US
EPA 200.2.
Chloride*
Ion Chromatography determination of a potassium phosphate
3 mg/kg dry wt
1
extract of an environmental solid.
pH
pH meter. APHA 4500-H+ B 23rd ed. 2017.
0.10 pH Units
1
Total Nitrogen*
Catalytic Combustion (900°C, O2), separation, Thermal
0.05 g/100g dry wt
1
Conductivity Detector [Elementar Analyser].
These samples were collected by yourselves (or your agent) and analysed as received at the laboratory.
Samples are held at the laboratory after reporting for a length of time depending on the preservation used and the stability of
the analytes being tested. Once the storage period is completed the samples are discarded unless otherwise advised by the
client.
This certificate of analysis must not be reproduced, except in full, without the written consent of the signatory.
Ara Heron BSc (Tech)
Client Services Manager - Environmental
